Ford Ranger Fridge Setup: Placement, Slides and 12V Power

A lot of Ranger canopy builds start with the drawers. Then the fridge arrives.

Suddenly the lid cannot fully open. The fridge is chest height. The slide handle hits the canopy opening. The power cable gets caught in the runner. The compressor vents against a wall. And the whole fridge needs to be lifted down just to reach the bottom.

The better approach is the opposite. Choose the fridge, measure its access requirements and decide its position first. Then design the drawers around it.

This guide covers where to place the fridge, sizing beyond capacity, straight slides vs drop slides, MSA vs ARB, drawer integration, tie down and restraint, ventilation, 12V power and cable management, auxiliary batteries and realistic energy consumption.

Quick answer: where should a fridge go in a Ranger canopy?

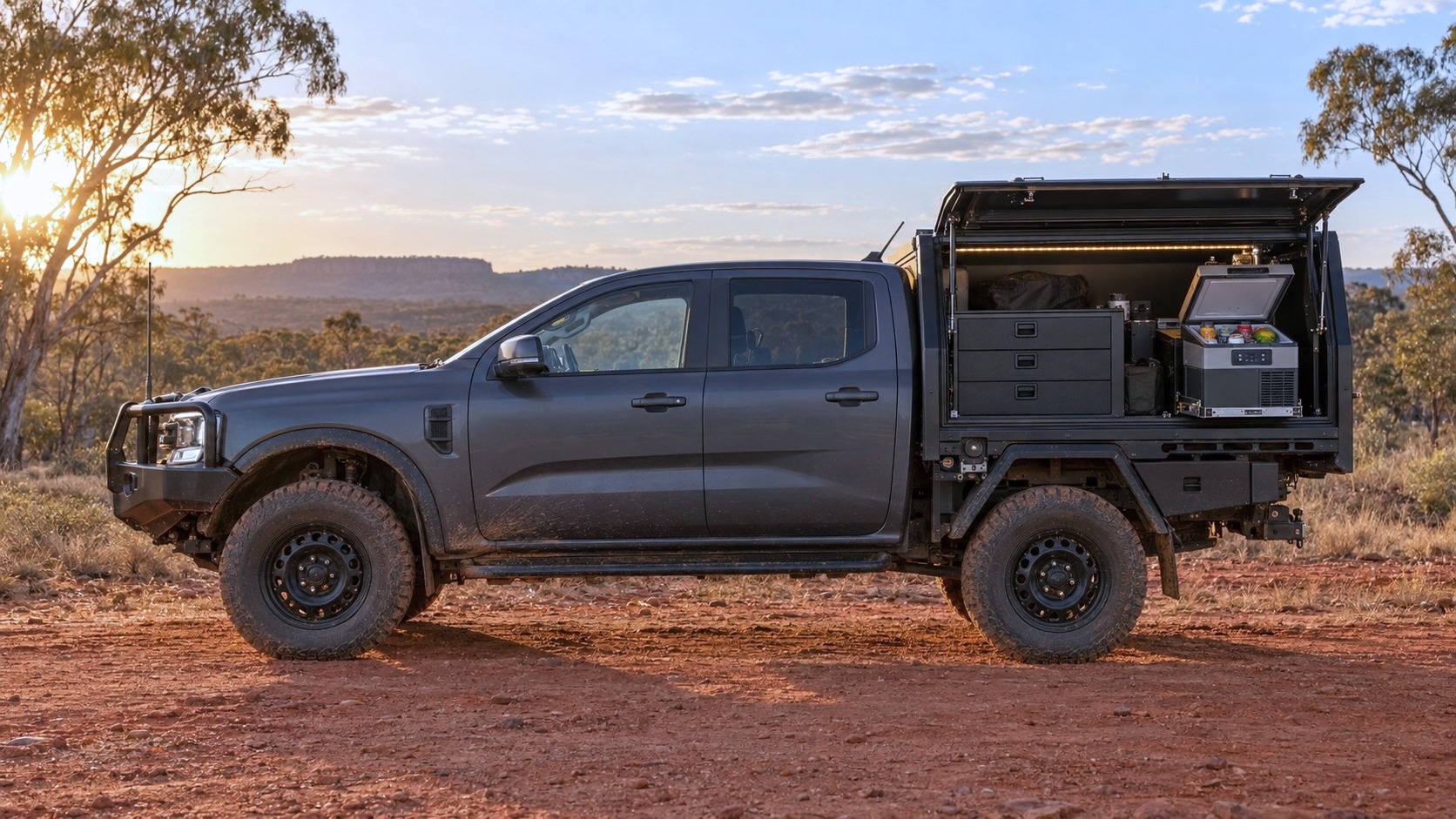

For most canopy builds, the fridge should be accessible from a main gullwing or rear opening, low enough to see inside and reach the bottom, mounted on a properly supported slide, restrained independently from the slide, close enough to the power system to avoid unnecessary cable length, positioned with adequate ventilation around the compressor, away from water and loose cargo and placed so its lid can fully open.

If there is a choice between mounting the fridge high over drawers or low beside them, low beside the drawers is usually easier to live with. High over the drawers saves floor space but often creates the need for a drop slide.

Choose the fridge before designing the canopy fitout

Fridge capacity is only one dimension

A “45L fridge” tells you almost nothing about whether it fits a specific canopy and drawer layout. You need to measure external width, depth, height, handle width and clearance, lid opening direction, power plug location, ventilation areas and required clearance and transit bag dimensions if you plan to use one.

Current Dometic CFX5 models range across multiple capacities and use removable lids, external handles and AC/DC connections, all of which need to be considered when the fridge sits within a tight canopy enclosure.

Add the slide dimensions

The slide may be wider and longer than the fridge. Then allow for the latch mechanism, mounting bolts, cable guide, tie down straps, adjacent drawer wall, canopy door opening and full slide extension beyond the canopy.

Measure the fridge with the lid open

This gets missed constantly. Calculate: canopy opening height minus slide height minus drawer height minus fridge height. Then confirm there is enough room for the lid to open fully.

If not, your options are lower the fridge, change fridge orientation, choose a smaller fridge, use a removable lid where the fridge model supports it or use a drop slide.

Common mistake: Measuring fridge capacity but not exterior dimensions. A 50L fridge from one brand can be dramatically different in height and width from a 50L fridge from another brand.

Best fridge position in a Ranger canopy

Low and forward

Where the canopy layout allows, the fridge is generally better kept low rather than stacked unnecessarily high. Benefits include easier access, less lifting, better visibility into the fridge, reduced need for an expensive drop slide and lower centre of gravity, which matters on an accessorised Ranger already carrying canopy, drawers, roof gear and passengers. For how total weight distribution affects handling and payload, see our Ford Ranger payload and GVM guide.

Near the gullwing opening

This is often the easiest everyday position. Especially useful for camp cooking, roadside lunch stops, quick drink access and shopping trips. You should be able to open the canopy and access the fridge without unloading anything else.

Rear access position

Can work well with rear drawers, tailgate kitchen setups, ARB style drawer systems and wagon inspired fitouts. But check whether tailgate height makes access awkward, caravan drawbar interferes when hitched, rear cargo blocks the fridge and the slide requires more rear clearance than expected.

Driver or passenger side?

There is no universal answer. Passenger side can make sense for roadside access away from traffic, camp kitchen layout and awning side. Driver side can make sense for electrical system proximity, existing drawer configuration and regular work access. The key is designing the whole side as one functional zone.

Straight fridge slide vs drop slide

Straight slide

A straight slide simply brings the fridge horizontally out of the canopy.

Advantages: Simple, lighter, fewer moving components, cheaper, less vertical movement, compact and excellent when the fridge is already at a usable height.

Disadvantages: If the fridge sits above a tall drawer system, the slide brings it closer to you without making it any lower.

Best for: Low fridge mounting, compact drawer systems, tradie setups and owners who prioritise simplicity.

Drop slide

A drop slide extends the fridge outward and then lowers it. MSA’s current Drop Slide range provides a 300 mm vertical drop, with published models from DS40 through DS95. MSA lists a 200 kg slide load limit across those models.

Advantages: Dramatically improves access to a high fridge, useful above drawer systems, allows larger fridges to remain usable and excellent for taller canopy floors.

Disadvantages: Heavier than a simple straight slide (MSA DS40 weighs 34 kg), more expensive, takes more space when extended, more moving components and may influence drawer design.

Best for: Fridge mounted over drawers, tall Ranger canopy fitouts, large fridges and users who cannot comfortably reach into a high fridge.

The recommendation: If you can comfortably reach the fridge on a straight slide, do not buy a drop slide just because it looks impressive.

Why drop slide clearance matters

Using MSA’s current published dimensions, even its relatively compact DS40 requires approximately 800 mm plus 20 mm closed length and 1,670 mm plus 20 mm open length. The larger DS60 extends to approximately 1,965 mm plus 20 mm when open.

That is a huge difference between closed and open.

Before buying a drop slide, check the canopy door opening width, room beside the Ranger when parked, drawers behind the slide, caravan or trailer clearance, awning poles and campsite spacing.

A drop slide that fits inside the canopy may still not have enough room to operate outside it.

MSA Drop Slide vs Straight Slide comparison

Feature	MSA Drop Slide	MSA Straight Slide
Horizontal extension	Yes	Yes
Vertical drop	300 mm	No
Published load limit	200 kg	200 kg
Complexity	Higher	Lower
Weight (DS40 example)	34 kg	Lighter
Space required when open	More (1,670 to 1,965 mm+)	Less
Best use	Fridge above drawers	Low fridge placement
Accessibility	Excellent regardless of height	Depends on mounting height

MSA’s current guide lists both Drop Slides and Straight Slides in multiple footprints for different fridge sizes and orientations. MSA also offers a Lifetime Guarantee on its slide range. Pricing currently runs from approximately $770 to $855 for the DS40 and $843 to $937 for the DS60 at various retailers.

ARB fridge slides

ARB takes a more fridge specific approach rather than offering one universal slide for every fridge.

ARB Classic slide

ARB’s current extended fridge slide for its 35 L and 47 L Classic fridges uses steel construction with ecoat finish and zinc plating, heavy duty sealed roller bearings, positive lock in and lock out mechanism, 120 kg maximum load (80 kg main tray plus 40 kg accessories tray), full extension capability, an accessories tray behind the fridge for batteries or tool boxes and four way adjustable anti vibration pads. Currently listed around $470.

ARB ZERO slides

ARB’s ZERO fridge slides use steel construction, sealed heavy duty roller bearings, lockable open and closed positions, integrated fridge foot locators and access to the fridge drain. A current slide for 36 L and 44 L ZERO fridges is listed around $538.

ARB Elements slide

ARB’s current Elements 60 L fridge slide is listed around $613. For how ARB slides integrate with ARB drawer systems and canopy fitouts, see our best drawer systems for Ford Ranger guide.

MSA vs ARB: which slide makes more sense?

Buyer situation	Better fit
Fridge mounted high	MSA Drop Slide
Low mounted fridge	Straight slide (either brand)
ARB fridge plus ARB drawers	ARB
Mixed brand fridge	MSA or universal compatible slide
Maximum accessibility from height	MSA Drop Slide
Simplicity and lower weight	Straight slide
Tight canopy with limited clearance	Measure carefully before either

Choose the slide for the fridge dimensions and mounting height, not the Ranger badge.

Integrating the fridge with drawers

Fridge beside drawers

The preferred general layout where space allows. Advantages: fridge remains low, simple straight slide possible, drawers can stay tall and easier access. Potential downside: consumes more canopy floor width.

Fridge above drawers

Popular because it maximises storage. Advantages: drawer space beneath the fridge and a compact footprint. Disadvantages: fridge becomes high, heavy load sits higher, a drop slide may become necessary, added slide weight and more complex installation. ARB offers drawer formats where a fridge can mount on a rolling top, demonstrating how drawer and fridge integration can be designed together rather than added later.

Half height drawers

A good middle ground. Example: shallow drawer below, fridge on straight slide above, remaining tall drawer alongside. This can avoid a full drop slide while still retaining some storage underneath.

Dedicated fridge module

For a premium touring setup: the fridge, slide, power outlet, cable guide, ventilation clearance, nearby switch and light and tie down mounts all form one module. That makes servicing and removal easier later. For how the full canopy fitout integrates fridge, drawers, lighting and 12V, see our Ford Ranger canopy touring setup guide.

Check the fridge lid before finalising drawers

This deserves its own section because it is such a common build problem.

Ask: which direction does the lid open? Can it be reversed? Can it be removed? Will it hit the canopy roof? Will it hit shelves? Will it hit the gullwing door? Will the transit cover make it taller?

The current ARB ZERO range includes quick release lid designs on some models, while current Dometic CFX5 models also use removable lids.

Still, do not design the fitout around the assumption that you will remove the lid every time you want a drink.

Common mistake: Buying drawers first, then discovering the fridge lid hits the canopy roof when opened. Now the only option is a smaller fridge or a drop slide.

The fridge must still be restrained

Bolting the slide to the drawer system secures the slide. It does not automatically secure the fridge.

ARB sells dedicated tie down systems for both its Classic and ZERO fridges specifically to prevent movement during travel. ARB’s turnbuckle hold down kit is designed to mount to its drawer systems or another suitable flat mounting surface.

The restraint system may use manufacturer brackets, rated straps, turnbuckles, fridge specific feet or slide specific mounts.

Why it matters: on corrugations, steep climbs, emergency braking and side slopes, a loaded fridge can move significantly if poorly restrained. The NTC Load Restraint Guide for Light Vehicles requires items to be restrained to withstand 0.8g forward, 0.5g rearward and 0.5g sideways. A loaded 50 L fridge with food, drinks and ice is heavy enough to cause damage or injury if it shifts during sudden braking.

Do not forget the weight of the food

The fitout weight includes the fridge, slide, tie down system, food, drinks and protective cover.

A fridge that weighs 25 kg empty might carry another 20 to 30 kg once filled with cans, bottled water, meat and frozen food. On a drop slide weighing 34 kg, the combined loaded system can be 80 to 90 kg.

Calculate fridge system weight when loaded, not just the empty appliance listed on the product page.

Fridge ventilation inside a canopy

Compressor fridges reject heat when operating. Do not wedge the fridge tightly between a drawer wall, canopy panel, storage box and bedding.

Follow the fridge manufacturer’s required clearance and keep its ventilation areas unobstructed. Dometic specifically markets its current CFX5 protective covers as maintaining cooling performance rather than simply wrapping the fridge completely, reinforcing the need to preserve the product’s designed airflow.

Poor ventilation means longer compressor run time, greater power consumption, reduced cooling performance and more heat inside the canopy. This is particularly important in summer, when a closed canopy parked in the Australian sun can become significantly hotter than outside ambient temperature. For how canopy heat and ventilation interact with the broader build, see our Ford Ranger canopy condensation guide.

Where should the 12V outlet go?

Place the outlet close enough that the fridge lead does not need to stretch when the slide moves. Best practice: close to the fridge, clear of slide runners, away from water, protected from cargo and mounted where the plug cannot be knocked loose.

Test cable length with the slide fully closed, halfway open, fully extended and fully dropped if using a drop slide. The cable needs a controlled movement path throughout.

Cable management on a fridge slide

A loose 12V cable can catch in runners, become pinched, pull from the fridge, rub against drawer edges and eventually break internally.

ARB offers a dedicated cable guide within its fridge accessory range, highlighting that power cable management is a real consideration on moving fridge installations.

Possible solutions include a cable chain, flexible cable guide, protected loop, properly positioned clips and strain relief at both ends. Avoid tight cable ties that prevent the cable from moving naturally with the slide. For how wiring penetrations through canopy walls should be sealed, see our Ford Ranger canopy internal lighting guide.

How much 12V power does a fridge use?

There is no useful universal number such as “a 12V fridge uses 2 amps.”

A compressor fridge cycles on and off. REDARC says consumption varies with ambient temperature, fridge ventilation, seal condition, fridge contents and appliance size.

Other influences include selected temperature, fridge vs freezer use, number of lid openings, pre cooled vs warm contents, insulation quality and direct sunlight on the canopy.

Peak current vs average consumption

The compressor might draw several amps while running, then almost nothing while cycled off. Maximum current tells you how to size the circuit. Average energy consumption tells you how long the battery will last. Do not confuse the two.

Use Ah per day for battery planning

Because compressor fridges cycle, the best figure is the manufacturer’s measured or estimated Ah per day or Wh per day under stated test conditions.

Illustrative calculation only (not a claimed draw for a specific fridge):

If a fridge averages 1.5 A over 24 hours: 1.5 multiplied by 24 equals 36 Ah per day. If actual hot weather operation averages 2.5 A: 2.5 multiplied by 24 equals 60 Ah per day.

That range matters for battery sizing. A fridge that needs 36 Ah per day in mild weather might need 60 Ah per day parked in direct sun in summer.

Starter battery or auxiliary battery?

Starter battery

Fine for running the fridge while driving where the vehicle circuit is designed for it and for temporary use. But leaving a fridge connected after the engine stops risks consuming the battery needed to start the Ranger. REDARC explicitly recommends using an auxiliary battery so a fridge can remain running without draining the starter battery.

Auxiliary battery

Better for overnight trips, touring, remote camping, fridge and freezer operation and additional canopy lighting and accessories. A typical system can include an auxiliary battery, DC DC charger, fridge circuit, fuse block, battery monitor and solar input.

REDARC’s current guidance recommends DC DC charging for modern vehicles using smart and temperature compensated charging systems and supports canopy mounted auxiliary battery installations. For the full 12V system planning guide covering BCDC vs Manager30, lithium vs AGM and solar, see our Ford Ranger 12V electrical setup guide.

Lithium vs AGM for a fridge setup

Lithium: Lower weight for usable capacity, deeper usable discharge and strong touring option. REDARC currently recommends lithium particularly where auxiliary batteries are installed in a canopy and weight matters.

AGM or Gel: Cheaper, established technology and sealed options available for canopy installations.

The right battery depends on fridge demand, trip length, solar availability, charging rate, budget and total canopy electrical load.

Should the fridge have its own fused circuit?

Yes. For a permanent installation, the fridge should have a properly protected dedicated circuit sized to the fridge manufacturer’s requirements.

The basic arrangement: auxiliary battery to fuse to suitable cable to fridge socket to fridge.

The benefits: easier fault diagnosis, known circuit capacity, simple isolation and less interaction with lights and other accessories.

Avoid powering a permanently installed fridge through a chain of extension leads, split cigarette sockets, adapters and loose plugs. A dedicated hardwired outlet is more reliable than any daisy chained temporary connection.

Slide type summary

System	Best for	Main advantage	Main compromise
No slide	Removable or basic setup	Lowest weight and cost	Poor access
Straight slide	Low fridge	Simple and reliable	Does not reduce height
Drop slide	High fridge	Best accessibility	Cost, weight, space
Drawer roller floor	Integrated storage	Very clean fitout	Drawer system dependent

Three Ranger fridge setup examples

Setup 1: simple weekend Ranger

40 to 50 L fridge. Low mounted straight slide. Manufacturer tie down. Dedicated fused 12V outlet. Modest auxiliary power system. Best for weekend camping and short trips.

Setup 2: touring canopy

50 to 75 L fridge or freezer. Low placement where possible. MSA straight or Drop Slide depending on drawer height. Drawers alongside or underneath. Auxiliary lithium battery. DC DC charging. Solar. Fridge lighting. Protected cable guide. Best for extended touring.

Setup 3: family or remote build

Larger dual zone fridge. Heavy duty slide. Strong restraint system. Dedicated power circuit. Sizeable auxiliary battery. Charging plus solar. Ventilation planned into fitout design. Food stored low. Freezer zone used for longer trips. Best for extended remote travel.

What we recommend at Oz Canopies & 4×4

Choose the fridge first, work out how high it will sit once the drawers and slide are underneath it and physically check whether you can reach the bottom. If a straight slide keeps it accessible, keep the setup simple. If drawer height pushes the fridge out of reach, a properly sized drop slide can transform the usability of the whole canopy. Then give the fridge its own restraint, ventilation and a dependable auxiliary power circuit so it stays cold when the Ranger stops moving. When choosing a canopy for Ranger, consider fridge placement, door opening height and side access options early so the canopy suits the fridge layout rather than limiting it.

Common Ranger fridge setup mistakes

• Buying drawers before choosing the fridge
• Measuring fridge capacity but not exterior dimensions
• Forgetting the transit bag adds size
• Forgetting lid opening clearance
• Mounting the fridge too high without a drop slide
• Buying a drop slide when a lower mount would solve the problem
• Not checking how far the drop slide extends when open
• Slide clears canopy but hits caravan or campsite equipment
• Blocking compressor ventilation against a wall or bedding
• Bolting down the slide but not restraining the fridge
• Letting the 12V cable hang into slide runners
• Using an outlet too far from the fridge
• Relying on a loose cigarette plug on corrugations
• Running the fridge indefinitely from the starter battery
• Designing battery capacity from peak amps rather than real daily consumption
• Ignoring fridge plus slide plus food weight in payload calculations
• Mounting the fridge where another drawer has to be opened first
• Putting water storage directly above the electrical and fridge connection

Ranger fridge setup checklist

Before ordering anything:

• What fridge capacity do I actually need?
• Exact external dimensions?
• Dimensions with transit cover?
• Lid opening direction?
• Lid open height?
• Fridge empty weight?
• Loaded weight estimate?
• Straight slide or drop slide?
• Slide tray dimensions?
• Slide load rating?
• Full open length?
• Full drop clearance?
• Canopy door opening dimensions?
• Drawer height?
• Can I reach the bottom of the fridge comfortably?
• Is the fridge properly restrained?
• Is compressor ventilation unobstructed?
• Where is the 12V socket?
• Does the cable clear the slide throughout its movement?
• Dedicated fuse?
• Suitable cable size?
• Starter or auxiliary battery?
• Battery capacity?
• DC DC charging?
• Solar required?
• Total impact on Ranger payload?

Frequently asked questions

Where should I put a fridge in a Ford Ranger canopy? Low and accessible from the main gullwing or rear opening. The fridge should be easy to see into, easy to reach the bottom of and positioned with enough ventilation for the compressor. Near the gullwing opening works well for most touring builds.

What size fridge fits a Ford Ranger canopy? Depends on the canopy width, drawer layout and slide type. Most Ranger canopy builds suit 35 to 60 L fridges comfortably. Larger dual zone units (75 L+) may need more careful planning around drawer height and lid clearance.

Do I need a fridge slide? For a permanently installed canopy fridge, yes. A slide provides safe, controlled access without climbing into the canopy. It also allows the fridge to be properly restrained while stowed.

Is a drop slide worth it? Yes, if the fridge sits above drawers and is too high to reach comfortably on a straight slide. No, if the fridge is already at a usable height. Do not buy a drop slide just because it looks impressive.

Is MSA or ARB better for a fridge slide? Different approaches. MSA offers universal sizing with a 300 mm drop option and 200 kg rating. ARB offers fridge specific slides designed for its own fridge range. Choose based on fridge brand, mounting height and whether a drop is needed.

How much weight can an MSA Drop Slide hold? MSA lists 200 kg across its Drop Slide range. That includes the fridge, food, drinks and anything else on the tray.

Can I put a fridge on top of drawers? Yes, but the fridge becomes higher and may require a drop slide. Check whether you can reach the bottom of the fridge comfortably before committing to this layout.

How should a fridge be tied down in a canopy? Independently from the slide. The slide being bolted down does not restrain the fridge. Use manufacturer brackets, rated straps or turnbuckles designed for the fridge and slide combination.

How much power does a 12V fridge use? It varies. REDARC says consumption depends on temperature, ventilation, seal condition, contents and fridge size. For battery planning, use the manufacturer’s Ah per day or Wh per day figure rather than peak current draw.

Will a fridge flatten my Ranger battery? If left running from the starter battery with the engine off, yes. REDARC recommends an auxiliary battery so the fridge can run without risking the starter battery.

Do I need a dual battery for a fridge? For overnight trips, touring and remote camping, yes. An auxiliary battery with DC DC charging provides reliable fridge power without risking the Ranger’s ability to start.

Does a fridge need ventilation inside a canopy? Yes. Compressor fridges reject heat while operating. Follow the manufacturer’s clearance requirements and keep ventilation areas unobstructed. Poor ventilation increases power consumption and reduces cooling performance.

Where should the fridge power socket go? Close enough to the fridge that the cable does not stretch when the slide is fully extended. Clear of slide runners, away from water and mounted securely.

Can a fridge slide be mounted directly to drawers? Many slides are designed to mount to a flat surface including drawer tops. Check the slide manufacturer’s mounting requirements and ensure the drawer system can support the loaded weight.

Next step: choose the fridge before the drawers

Planning a fridge for your Ranger canopy? Choose the fridge first, work out how high it will sit once the drawers and slide are underneath and physically check whether you can reach the bottom. If a straight slide keeps it accessible, keep the setup simple. If drawer height pushes the fridge out of reach, a properly sized drop slide can transform the usability of the whole canopy.
